Info Letter No. 133 - May/June 2012

by Fritz Ruoss


WN2/WN2+ Quick3 View

New Quick3 view contains drawing of internal and external spline, tables with dimensions and strength data, and tolerance chart.


FED1, 2, 3, 5, 6,7, 8, 9, 11: Titan Grade 5

Titan Grade 5 (Ti-6Al-4V) in condition "annealed" and "spring temper" has been added to the material database.


WN5 Quick3 View

New Quick3 View with spline drawing, tolerance chart, and tables with dimensions and strength data added.


SR1 Description of Clamping Plates

Description instead of material of the clamping plates is now displayed in table drawing and at "Edit->Clamping Plates", if a description was entered. If you did not input description or used default "P 1" for clamping plate 1, clamping plate materials are listed as in earlier versions. Standard printout was extended by a list of clamping plate descriptions.

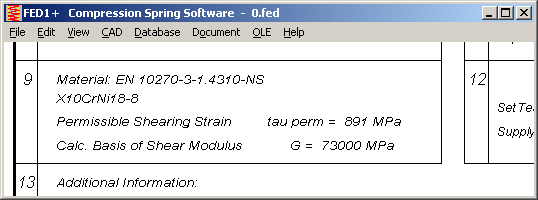

FED1+, 2+, 3+, 5, 6, 7: Material Names in Production Drawing Configurable

Until now, Descriptions NAME1, NAME2 and NAME3 of the material database were printed in production drawing. Fields NAME2 and NAME3 may be brand names or former DIN standards, that can be omitted now. At "Edit->Production Drawing", you can configure if Name2 and Name3 of the material also should be printed.


DI1 - Demo version

A demo version of the new DI1 software for O-ring seals is now available - also as 64 bit version. Although 64 bit versions are unnecessary until today, because 32-bit Versions run on 64-bit Windows. The 64-bit version, however, runs on 64-bit Windows only.


Seminars 2012/2013

Prof.Dr. Körner offers Seminars in Aalen for autumn 2012 and spring 2013:

Info: www.hexagon.de/services/seminarplan-2012-2013.pdf
