FED2+, FED3+: Compare spring material

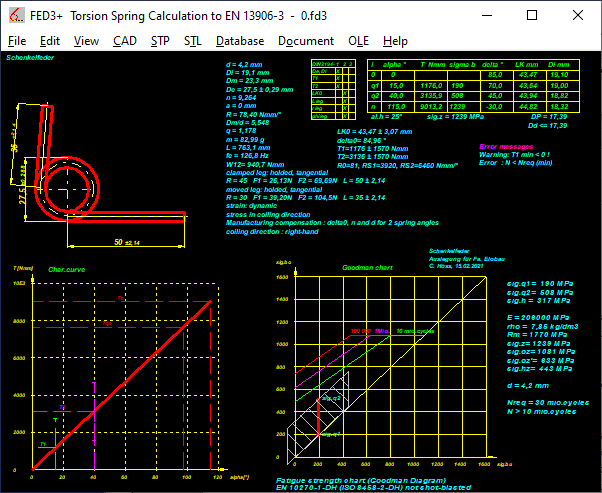

As in FED1 +, you can now choose the optimal material for tension springs and torsion springs by comparing the materials from the database.

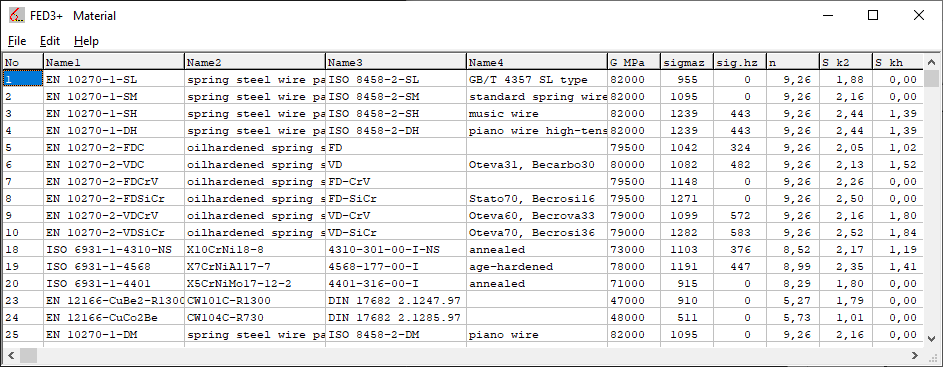

Select the material with a mouse click or the cursor keys, then the spring is recalculated and the results are displayed in the background graphic. In the table you can compare the materials based on the safety factors S k2 = tauz / tauk2 and S kh = tauhz / (tauk2-tauk1).


WL1 +: Calculation of shafts on three, four or five bearings

The calculation of shafts with three, four or five bearings now runs faster and the message "Final value C not reached" no longer appears because the accuracy was limited to a minimum of 0.0001mm. This mainly applies to shafts with zero deflection in either xy plane or xz plane.

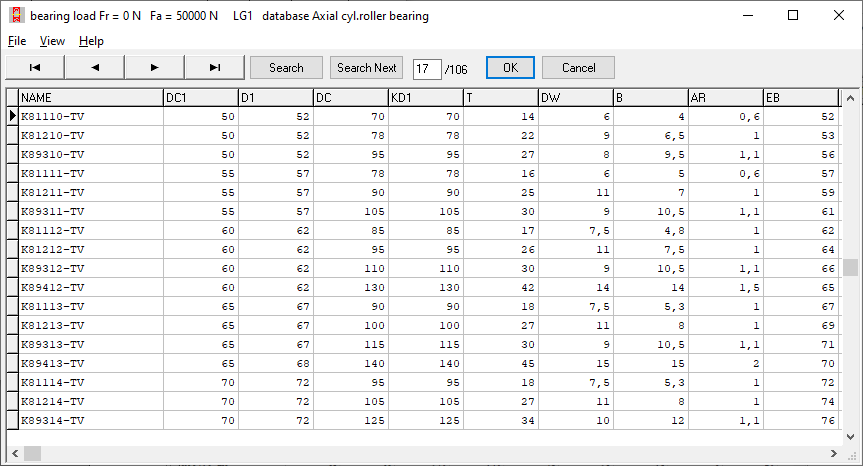

LG1: Axial needle roller and cage assemblies and axial cylindrical roller bearings

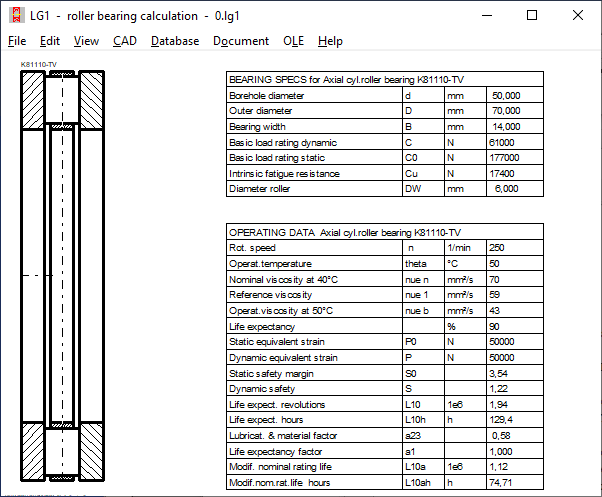

With LG1 you can now also calculate axial bearings: Axial needle roller and cage assemblies and axial cylindrical roller bearings have been added.

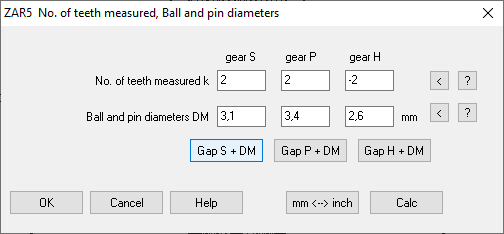

ZAR5, ZAR7, ZAR8: Tooth gap drawing button at input of measuring circle

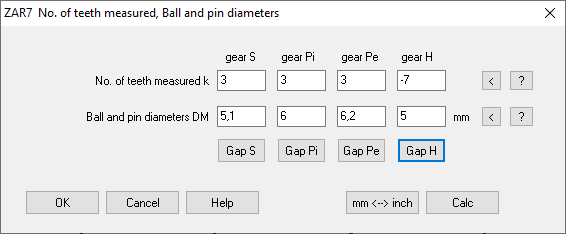

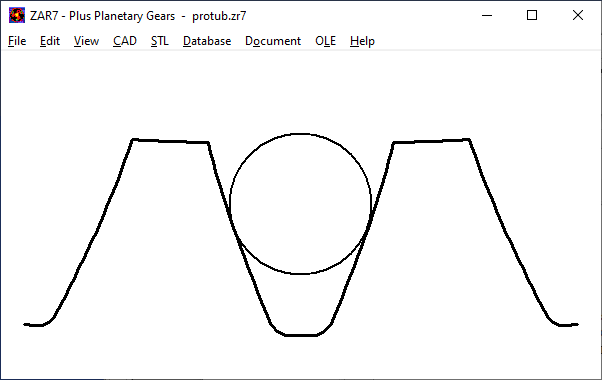

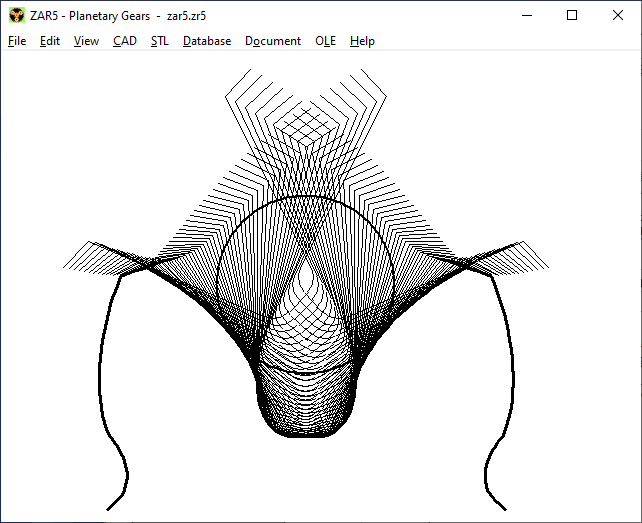

At "Edit Measurement" , a push of the new buttons "Gap" shows a drawing of the tooth gap with measuring circle in the background window for sun gear S, planet gear P, ring gear H.

So you can quickly test different ball or pin diameters for suitability.


SR1/SR1+: Elastic resilience: consider multiple bore diameters and long holes

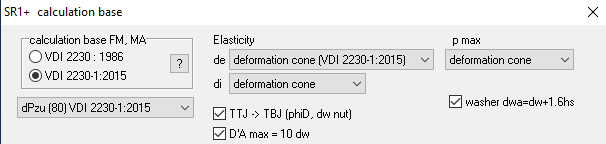

Under "Calculation method" you can now configure "di deformation cone" to calculate the hole in the clamping plates as a cone instead of a cylinder in the case of elastic resilience. If you use clamping plates with standard-compliant bores, this is of no interest, the result always remains the same. The elastic resilience deltaP only changes if several clamping plates with changing inside diameters or elongated holes are used. Instead of the inner diameter of the clamping plate, a cone from the inner contact diameters of the adjacent clamping plates is then used.

The elastic compliance is calculated as follows:

Cylinder: Delta = L / (E * A) = 4 * L / (E * pi * d²)

Truncated cone: Delta = 4 * L * (1 / dmin - 1 / dmax) / (pi * E * (dmax-dmin)

With L = length, d = diameter, E = modulus of elasticity

If this option is selected, the inner cones are drawn in the drawing of the bolted joint.


SR1 Tip: Tightening angle for combined torque-and-angle controlled tightening

SR1 calculates the tightening angle from the elastic origin to the specified yield strength factor. For example, torque-controlled tightening up to 30% yield point, then further up to 90% yield point under rotation angle control. How large is the angle of rotation from 30% yield point to 90% yield point? Quite simply, SR1 calculates the tightening angle of rotation alphaRe up to the yield point. Then the angle of further rotation is

deltaAlpha = alphaRe * (90% -30%) / 100% = 0.6 * alphaRe

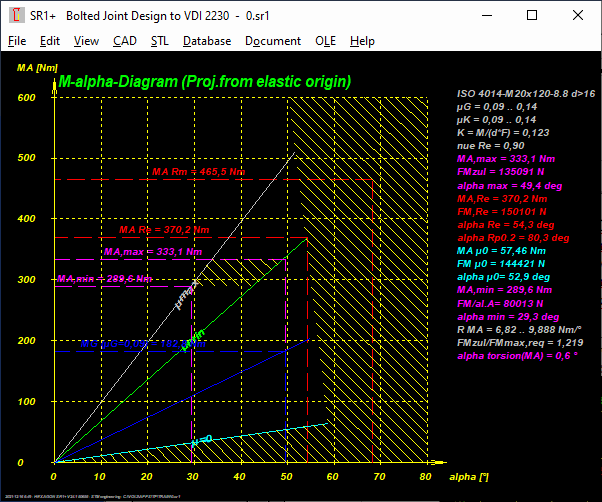

The tightening torque for 30% Re can either be entered, or read off in the M-alpha diagram for alpha = 0.3 * alphaRe (with deviation due to friction tolerance).


Tip: Bending angle and deflection of leaf springs, girders and shafts

The deflection of leaf springs firmly clamped on one side is calculated with:

s = F * L³ / (2 * E * I)

the bending angle at the free end with

tan (alpha) = F * L² / (2 * E * I)

So is

tan (alpha) = 3/2 * s / L

Or the other way around

s = 2/3 * tan (alpha) * L

Independent of the spring width, thickness, material.

Example: If the incline of a 100 mm long leaf spring should not exceed 15 °, the deflection must be less than 17.8 mm.
